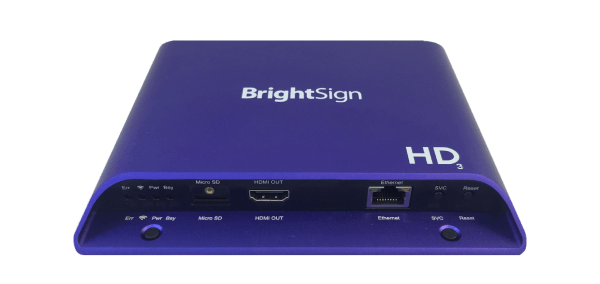

BrightSign Digital Signage Player HD223

BRIGHTSIGN HD

AN UPDATED CLASSIC.
MAINSTREAM PERFORMANCE.

BrightSign HD models are ideal for mainstream Full HD and HTML5 applications that require high reliability and ease of use. All models offer H.265 decoding, HTML5 rendering with mainstream performance, and Gigabit Ethernet. Robust interactive controls, live content features, BrightWallTM and Mosaic Mode make this set of players a perfect fit for a wide range of applications.

Digital Signage Player HD223

Enjoy flawless Full HD single video decoding, mainstream HTML5 performance and simultaneous playback from local, networked and streaming sources. Includes the standard I/O package of gigabit Ethernet, GPIO (GPIO connectors sold separately), analog and digital audio.

Product Aplications

CORPORATE LOBBY INFORMATION KIOSKS
Deliver relevant and timely messages to your corporate audience using simultaneous content playback from local, networked and streaming sources.

EYE-CATCHING VIDEOWALLS
Capture attention with frame-accurate synchronization across a multitude ofscreens. to set the stage for some serious retail therapy.

Specifications

  • Single 1080p60 video decoding
  • Video Codecs: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1
  • Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv
  • Images: BMP, JPEG, PNG
  • Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
  • HTML5 (Mainstream)
  • 1920×1200, 1920x1080x24/25/29.97/30/50/59.94/60p, 1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p, 1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p, 1280x960x60p, 1280x800x60p/75p, 1280x768x60p, 1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p
  • External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB
  • Phoenix GPIO Port (12-pin bi-directional)
  • 3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
  • HDMI 1.4a Out
  • Ethernet (Gigabit)
  • M.2 (E) Keyed Wi-Fi/Bluetooth Connector
  • Wi-Fi External Antenna Connector (optional)
  • Status LEDs (Power, Error, Busy, Update)
  • Reset and Service Buttons
  • Real Time Clock

Features

  • H.265 Decoding: smaller file sizes and lower bitrates than H.264
  • HTML5: hardware-accelerated engine that plays modular HTML assets flawlessly alongside high-bandwidth video (Mainstream)
  • BrightBeacon™: 2-way Bluetooth/Beacon communication between mobile devices & signage (requires: wireless/ Bluetooth module)
  • BrightWall™: synchronized playback across multiple displays
  • AutoWall™: embraces the power of HTML5 to create unique multimedia video walls
  • Zones: playback multiple content types on a single screen
  • Mosaic Mode: simultaneously play a multitude of smaller resolution videos that add up to the maximum video resolution of the player
  • IP Streaming: play streaming media
  • IP Streaming Server: serve IP streams from local storage
  • Interactivity: connect virtually any type of interactive device to a multitude of interactive ports (GPIO, UDP)
  • Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc.
  • Tagging: BrightSign Network users can assign media and player tags for highly targeted content distribution
  • BrightSign App: update signs with an iOS device
  • Sign Preview: preview presentation playback in BrightAuthor
  • Remote Snapshot: remotely view a snapshot image of the display’s playback
  • BrightPlates™: easy template-based sign creation service
  • Networking: update, manage and schedule your signage
  • B-deploy: A setup feature to deploy many players at once
  • Extended Thermal: supports ambient temperatures between 0° & 70° C at 90% max relative humidity, non-condensing

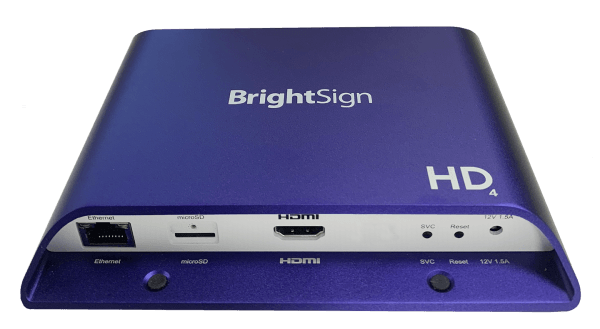

Digital Signage Player HD224

BRIGHTSIGN HD

AN UPDATED CLASSIC NOW WITH TRUE 4K.
MAINSTREAM PERFORMANCE.

BrightSign HD models are ideal for mainstream 4Kp60, Full HD and HTML5 applications that require high reliability and ease of use. All models offer H.265 decoding, HTML5 rendering and Gigabit Ethernet. Robust interactive controls, live content features, BrightWall™ and Mosaic Mode make this set of players a perfect fit for a wide range of applications.

Digital Signage Player HD224

Enjoy flawless 4K and Full HD single video decoding, mainstream HTML5 performance and simultaneous playback from local, networked and streaming sources. Includes the standard I/O package of Gigabit Ethernet, GPIO, and analog/digital audio.

Product Aplications

4K CORPORATE LOBBY INFORMATION KIOSKS
Deliver relevant and timely messages to your corporate audience using mainstream 4K video, touch interactivity and simultaneous content playback from local, networked and streaming sources.

EYE-CATCHING VIDEOWALLS
Capture attention with frame-accurate synchronization across a multitude ofscreens. to set the stage for some serious retail therapy – now in true 4K resolution.

Specifications

  • True 4K@60p video decoding
  • Single 4K or 1080p60 video decoding
  • Video Codecs for 4K content: H.265/H.264
  • Video Containers for 4K H.265/H.264 content: .ts, .mov, .mp4
  • Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1
  • Video Containers for Full HD: .ts, .mpg, .vob, .mov, .mp4, .m2ts
  • Images: BMP, JPEG, PNG
  • Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
  • HTML5 (Mainstream)
  • 4K resolutions: 4096×2160, 3840×2160, 3840×600
  • Upscaling to: 3840x2160x24/25/29.97/30p
  • 1920×1200, 1920x1080x24/25/29.97/30/50/59.94/60p, 1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p, 1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p, 1280x960x60p, 1280x800x60p/75p, 1280x768x60p, 1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p
  • External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB
  • 12-pin Phoenix GPIO port with 8 bi-directional GPIOs
  • 3.5mm IR In/Out
  • 3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
  • HDMI 2.0a Out
  • Ethernet
  • M.2 (E) Keyed Wi-Fi/Bluetooth Connector
  • Wi-Fi External Antenna Connector (optional)
  • Status LEDs (Power, Error, Busy, Update)
  • Reset and Service Buttons
  • Real Time Clock

Features

  • H.265 Decoding: smaller file sizes and lower bitrates than H.264
  • HTML5: hardware-accelerated engine that plays modular HTML assets flawlessly alongside high-bandwidth video (Mainstream)
  • BrightBeacon™: 2-way Bluetooth/Beacon communication between mobile devices & signage (requires: wireless/ Bluetooth module)
  • BrightWall™: synchronized playback across multiple displays
  • AutoWall™: embraces the power of HTML5 to create unique multimedia video walls
  • Zones: playback multiple content types on a single screen
  • Mosaic Mode: simultaneously play a multitude of smaller resolution videos that add up to the maximum video resolution of the player
  • IP Streaming: play streaming media
  • Interactivity: connect virtually any type of interactive device to a multitude of interactive ports (GPIO, UDP)
  • Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc
  • Tagging: BrightSign Network users can assign media and player tags for highly targeted content distribution
  • BrightSign App: update signs with an iOS device
  • Sign Preview: preview presentation playback in BrightAuthor
  • Remote Snapshot: remotely view a snapshot image of the display’s playback
  • Networking: update, manage and schedule your signage
  • B-deploy: A setup feature to deploy many players at once
  • Extended Thermal: supports ambient temperatures between 0° & 70° C at 90% max relative humidity, non-condensing

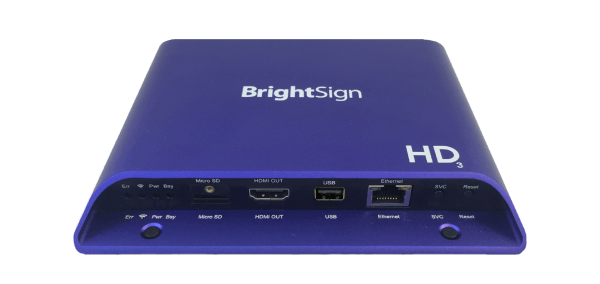

BrightSign Digital Signage Player HD1023

BRIGHTSIGN HD

AN UPDATED CLASSIC.
MAINSTREAM PERFORMANCE.

BrightSign HD models are ideal for mainstream Full HD and HTML5 applications that require high reliability and ease of use. All models offer H.265 decoding, HTML5 rendering with mainstream performance, and Gigabit Ethernet. Robust interactive controls, live content features, BrightWallTM and Mosaic Mode make this set of players a perfect fit for a wide range of applications.

Digital Signage Player HD1023

All the features of the HD223 plus additional interactive options via USB2.0 (type A) and serial to fully engage your audience.

Product Aplications

INTERACTIVE MUSEUM EXHIBITS
Advanced interactive exhibits engage all audiences using serial and USB for viewer interaction with buttons, touch screens, motion sensors, switches, light sensors and more.

RETAIL DISPLAYS
Make the sale with Full HD video playback and digital audio to set the stage for some serious retail therapy.

Specifications

  • Single 1080p60 video decoding
  • Video Codecs: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1
  • Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv
  • Images: BMP, JPEG, PNG
  • Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
  • HTML5 (Mainstream)
  • 1920×1200, 1920x1080x24/25/29.97/30/50/59.94/60p, 1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p, 1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p, 1280x960x60p, 1280x800x60p/75p, 1280x768x60p, 1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p
  • External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB
  • USB High Speed Host Port (also supports content updates) (Type A)
  • Phoenix GPIO Port (12-pin bi-directional)
  • 3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
  • HDMI 1.4a Out
  • Ethernet (Gigabit)
  • M.2 (E) Keyed Wi-Fi/Bluetooth Connector
  • Wi-Fi External Antenna Connector (optional)
  • Status LEDs (Power, Error, Busy, Update)
  • Reset and Service Buttons
  • Real Time Clock

Features

  • H.265 Decoding: smaller file sizes and lower bitrates than H.264
  • HTML5: hardware-accelerated engine that plays modular HTML assets flawlessly alongside high-bandwidth video (Mainstream)
  • BrightBeacon™: 2-way Bluetooth/Beacon communication between mobile devices & signage (requires: wireless/ Bluetooth module)
  • BrightWall™: synchronized playback across multiple displays
  • AutoWall™: embraces the power of HTML5 to create unique multimedia video walls
  • Zones: playback multiple content types on a single screen
  • Mosaic Mode: simultaneously play a multitude of smaller resolution videos that add up to the maximum video resolution of the player
  • IP Streaming: play streaming media
  • IP Streaming Server: serve IP streams from local storage
  • Interactivity: connect virtually any type of interactive device to a multitude of interactive ports (GPIO, USB, serial, UDP)
  • Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc.
  • Tagging: BrightSign Network users can assign media and player tags for highly targeted content distribution
  • BrightSign App: update signs with an iOS device
  • Geo-Fencing: trigger playback based on location (requires USB dongle)
  • Sign Preview: preview presentation playback in BrightAuthor
  • Remote Snapshot: remotely view a snapshot image of the display’s playback
  • BrightPlates™: easy template-based sign creation service
  • Networking: update, manage and schedule your signage
  • B-deploy: A setup feature to deploy many players at once
  • Extended Thermal: supports ambient temperatures between 0° & 70° C at 90% max relative humidity, non-condensing

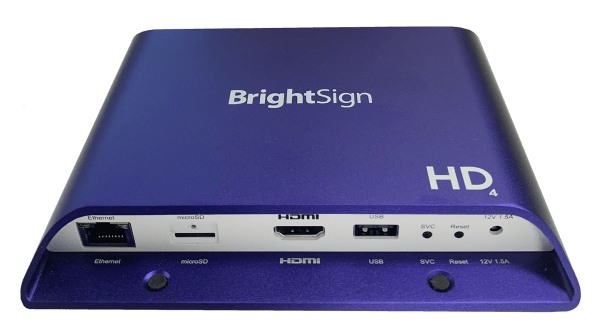

Digital Signage Player HD1024

BRIGHTSIGN HD

AN UPDATED CLASSIC NOW WITH TRUE 4K.
MAINSTREAM PERFORMANCE.

BrightSign HD models are ideal for mainstream 4Kp60, Full HD and HTML5 applications that require high reliability and ease of use. All models offer H.265 decoding, HTML5 rendering and Gigabit Ethernet. Robust interactive controls, live content features, BrightWall™ and Mosaic Mode make this set of players a perfect fit for a wide range of applications.

Digital Signage Player HD1024

All the features of the HD224 plus additional interactive options via USB 2.0 (type A), and serial ports to fully engage your audience.

Product Aplications

4K INTERACTIVE MUSEUM EXHIBITS
Advanced interactive exhibits engage all audiences using serial and USB for viewer interaction with buttons, touch screens, motion sensors, switches, light sensors and more.

RETAIL DISPLAYS
Make the sale with 4K or Full HD video playback and digital audio to set the stage for some serious retail therapy.

Specifications

  • True 4K@60p video decoding
  • Single 4K or 1080p60 video decoding
  • Video Codecs for 4K content: H.265/H.264
  • Video Containers for 4K H.265/H.264 content: .ts, .mov, .mp4
  • Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1
  • Video Containers for Full HD: .ts, .mpg, .vob, .mov, .mp4, .m2ts
  • Images: BMP, JPEG, PNG
  • Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
  • HTML5 (Mainstream)
  • 4K resolutions: 4096×2160, 3840×2160, 3840×600
  • Upscaling to: 3840x2160x24/25/29.97/30p
  • 1920×1200, 1920x1080x24/25/29.97/30/50/59.94/60p, 1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p, 1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p, 1280x960x60p, 1280x800x60p/75p, 1280x768x60p, 1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p
  • External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB
  • USB High Speed Host Port (also supports content updates) (Type A)
  • 12-pin Phoenix GPIO port with 8 bi-directional GPIOs
  • 3.5mm RS-232 Serial Port
  • 3.5mm IR In/Out
  • 3.5mm Audio Out (analog -or- SPDIF digital, nonsimultaneous)
  • HDMI 2.0a Out
  • Ethernet
  • M.2 (E) Keyed Wi-Fi/Bluetooth Connector
  • Wi-Fi External Antenna Connector (optional)
  • Status LEDs (Power, Error, Busy, Update)
  • Reset and Service Buttons
  • Real Time Clock

Features

  • H.265 Decoding: smaller file sizes and lower bitrates than H.264
  • HTML5: hardware-accelerated engine that plays modular HTML assets flawlessly alongside high-bandwidth video (Mainstream)
  • BrightBeacon™: 2-way Bluetooth/Beacon communication between mobile devices & signage (requires: wireless/ Bluetooth module)
  • BrightWall™: synchronized playback across multiple displays
  • AutoWall™: embraces the power of HTML5 to create unique multimedia video walls
  • Zones: playback multiple content types on a single screen
  • Mosaic Mode: simultaneously play a multitude of smaller resolution videos that add up to the maximum video resolution of the player
  • IP Streaming: play streaming media
  • Interactivity: connect virtually any type of interactive device to a multitude of interactive ports (GPIO, USB, serial, UDP)
  • Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc
  • Tagging: BrightSign Network users can assign media and player tags for highly targeted content distribution
  • BrightSign App: update signs with an iOS device
  • Geo-Fencing: trigger playback based on location (requires USB dongle)
  • Sign Preview: preview presentation playback in BrightAuthor
  • Remote Snapshot: remotely view a snapshot image of the display’s playback
  • Networking: update, manage and schedule your signage
  • B-deploy: A setup feature to deploy many players at once
  • Extended Thermal: supports ambient temperatures between 0° & 70° C at 90% max relative humidity, non-condensing
