Wujudkan Ruangan Conference Modern
Paperless Conference System

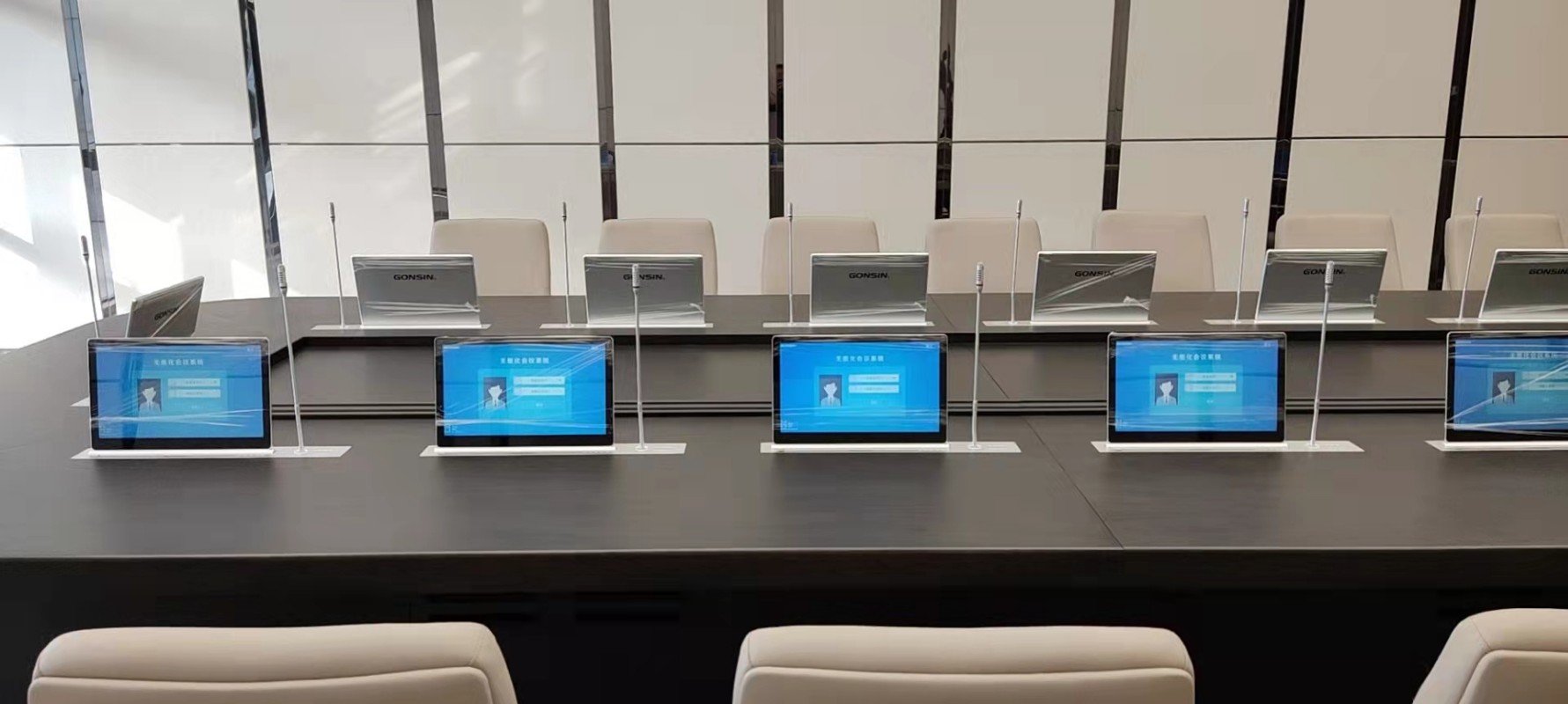

Paperless Conference System adalah sistem digital untuk mendukung jalannya konferensi, rapat, atau acara tanpa menggunakan dokumen fisik (kertas).
Di era ketika keberlanjutan dan efisiensi menjadi prioritas utama, beralih ke sistem konferensi tanpa kertas menghadirkan berbagai manfaat yang signifikan. Dengan menghilangkan ketergantungan pada dokumen fisik, Anda tidak hanya berkontribusi terhadap kelestarian lingkungan, tetapi juga menyederhanakan pengelolaan acara secara keseluruhan.
Paperless Conference System Terbaik
APC-15 / 17NT & APC-15 / 17TS
Touch Screen Extended Monitor Single Table
 |
 |
 |
|
|
| Model No | APC-15NT | APC-17NT | APC-15TS | APC-17TS |
| Screen Size | 15.6 inch LCD screen | 17.3 inch LCD screen | 15.6 inch LCD screen | 17.3 inch LCD screen |
| Monitor Size | 36.1×22.7×0.8 cm | 41.8×25.9×1 cm | 36.1×22.7×0.8 cm | 41.8×25.9×1 cm |
| Panel Size | 42.2×7.3×0.5 cm | 49×8×0.5 cm | 42.2×7.3×0.5 cm | 49×8×0.5 cm |
| Box Size | 43.2×7.1×60 cm | 50.5×16×62.5 cm | 43.2×7.1×60 cm | 50.5×16×62.5 cm |
| Interface | VGA/HDMI+RS232 I/O | HDMI+USB+RS232 I/O | USB/HDMI+RS4851 I/O | |
| Style | Motorized monitor lift | |||
| Color | Black / Silver | |||
| Material | Aluminum alloy | |||
| Panel Thickness | 5 mm | |||
| Monitor Pitch | 0° ~ 15° Degree | |||
| Control System | Central control RS232 | |||
| Application | High-class office conference meeting room | |||
| Switch | Up and down | |||
| Response Time | 16 | |||
| Display Color | 16.7 M (10 bit) | |||
| Power Consumption | 245 | |||
| Speed | 120 | |||
| Voltage | 12 | |||
| Working Voltage | 110~240VAC | |||
| Power | 35W ~ 55W | |||
| Working Frequency | 50/60 Hz | |||
| Tracking Function | Selection | |||
| Touch Screen | Selection | |||
| Web Cam | Selection | |||
| Mini PC | Selection | |||

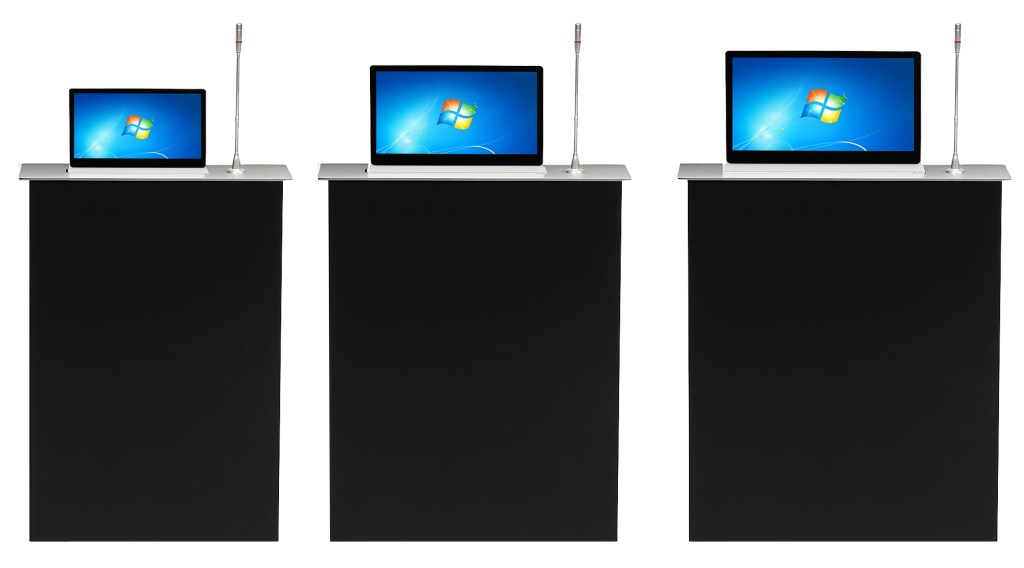

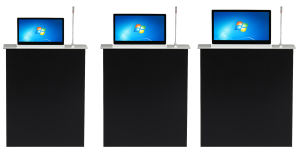

APC-15 / 17 / 21 TSM
Touch Screen Monitor with Microphone Single Table
|
|
 |
|
 |
| Model No | APC-15TSM | APC-17TSM | APC-21TSM |
| Panel | 61.3×7.8×0.18 cm | 65.3×7.8×0.18 cm | 72.8×7.8×0.18 cm |
| Case | 60.2×7.1×7.3 cm | 64.3×7.1×7.3 cm | 71.8×7.1×7.3 cm |
| Monitor Frame Size | 36.1×22.7×0.8 cm | 39.9×25.1×0.8 cm | 49.3×29×1.6 cm |
| Brightness | 300 cd/m² | 250 cd/m² | 300 cd/m² |
| Contrast Ratio | 1200:1 | 800:1 | 1000:1 |
| Size | 15.6 LED Screen | 17.3 LED Screen | 21.5 LED Screen |
| Cse Bottom Input | USB/HDMI+RS4851/O | ||
| Surface Panel | Aluminum Alloy | ||
| Monitor Shell | Aluminum Alloy | ||
| Pitch Angel | 0° ~ 30° Degree | ||
| Switch | UP/DOWN/STOP | ||
| Panel Input | USB/Button | ||
| Color | Black / Silver | ||
| Screen Type | IPS | ||
| Frame | Aluminum Alloy | ||
| Format | 16:9 FHD | ||
| Resolution | 1920×1080 | ||
| Viewing Angle | 179° | ||
| Pixel Resolution | 0.2 | ||
| Frequency | 60 Hz | ||
| Response Time | 16 | ||
| Display Color | 16.7 M (10 bit) | ||
| Power Consumption | 245 | ||
| Speed & Voltage | 120 / 12 | ||
| Working Voltage | 110~240VAC | ||
| Power | 35W ~ 55W | ||
| Working Frequency | 50/60 Hz | ||
| Microphone Length | 34 cm | ||
| Mic Shape | Goose Neck | ||
| Mic Type | Digital Mic | ||
| Working Type | Lifting Together | ||
| Control Way | Central / Button | ||
| Mic Function | Conference System | ||
| Tracking Function | Selection | ||
| Touch Screen | Selection | ||
| Web Cam | Selection | ||
| Mini PC | Selection | ||
APC-15 / 17 / 21 / 23 TSDM
Touch Screen Monitor with Dual Microphone Single Tabel
|
|
 |
 |
 |
 |
| Model No | APC-15TSDM | APC-17TSDM | APC-21TSDM | APC-23TSDM |
| Panel | 61.3×7.8×0.18 cm | 65.3×7.8×0.18 cm | 72.8×7.8×0.18 cm | 77.8×7.8×1.8 cm |
| Case | 60.2×7.1×7.3 cm | 64.3×7.1×7.3 cm | 71.8×7.1×7.3 cm | 76.8×7.1×7.3 cm |
| Monitor Frame Size | 36.1×22.7×0.8 cm | 39.9×25.1×0.8 cm | 49.3×29×1.6 cm | 54.3×32.5×1.8 cm |
| Brightness | 300 cd/m² | 250 cd/m² | 300 cd/m² | 300 cd/m² |
| Contrast Ratio | 1200:1 | 800:1 | 1000:1 | |
| Size | 15.6 LED Screen | |||
| Cse Bottom Input | USB/HDMI+RS4851/O | |||
| Surface Panel | Aluminum Alloy | |||
| Monitor Shell | Aluminum Alloy | |||
| Pitch Angel | 0° ~ 30° Degree | |||
| Switch | UP/DOWN/STOP | |||
| Panel Input | USB/Button | |||
| Color | Black / Silver | |||
| Screen Type | IPS | |||
| Frame | Aluminum Alloy | |||
| Format | 16:9 FHD | |||
| Resolution | 1920×1080 | |||
| Viewing Angle | 179° | |||
| Pixel Resolution | 0.2 | |||
| Frequency | 60 Hz | |||
| Response Time | 16 | |||
| Display Color | 16.7 M (10 bit) | |||
| Power Consumption | 245 | |||
| Speed & Voltage | 120 / 12 | |||
| Working Voltage | 110~240VAC | |||
| Power | 35W ~ 55W | |||
| Working Frequency | 50/60 Hz | |||
| Microphone Length | 34 cm | |||
| Mic Shape | Goose Neck | |||
| Mic Type | Digital Mic | |||
| Working Type | Lifting Together | |||
| Control Way | Central / Button | |||
| Mic Function | Conference System | |||
| Tracking Function | Selection | |||
| Touch Screen | Selection | |||
| Web Cam | Selection | |||
| Mini PC | Selection | |||
APT-I5 / I7 & APT-I5 / I7IU
Terminal For Paperless Conference System
| Model No | APT-I5 | APT-I7 | ||
| CPU | I5-8RD+ | I7-8RD+ | ||
| Memory | 4GB DDR3+ | |||
| SSD | 128GB | |||
| Network Card | (RJ45) | |||
| Interface | 2×USB2.0, 2×USB3.0, 1×VGA, 1×HDMI, 1×RJ45, 1×DC, 1×MIC-IN, 1×LINE-OUT, 1×USB switch | |||
| Operating System | Windows | |||
| Maximum Power Consumption | 12V DC | |||
| Support Wide Voltage | 110–240V, 50/60Hz | |||
| Dimensions | 21.8×20×6.5 cm | |||
| English Operation System | Individual & all screen sharing, PPT, comment, voting, viewing venue large screen, video sharing, information sharing | |||
| Model No | APT-I5IU | APT-I7IU | ||
| CPU | I5-8RD+ | I7-8RD+ | ||
| Memory | 8GB DDR3+ | |||
| SSD | 512GB | |||
| Network Card | (RJ45) | |||
| Interface | 2×USB2.0, 2×USB3.0, 1×VGA, 1×HDMI, 1×RJ45, 1×DC, 1×MIC-IN, 1×LINE-OUT, 1×USB switch | |||
| Operating System | Windows | |||
| Maximum Power Consumption | 12V DC | |||
| Support Wide Voltage | 110–240V, 50/60Hz | |||
| Dimensions | 21.8×20×6.5 cm | |||
| English Operation System | Individual & all screen sharing, PPT, comment, voting, viewing venue large screen, video sharing, information sharing | |||
| Model No | PCMS-I5 |
| Industrial | Grade 4U chassis, 19-inch standard cabinet interface |
| Process | Anodizing |
| CPU | Intel I5 |
| Memory specification | 8GB DDR3 |
| Hard disk | SSD 128GB solid state + Mechanical 1TB |
| Operating system | Support Windows, Linux, and other multi-system deployment |
| Maximum power consumption | 85W |
| Support wide voltage | 110–240V, 50/60Hz |
| Interface | 2×RJ45, 8×USB, 1×HDMI, 1×VGA, 1×AC, 2×COM |
| Dimensions | 48.2×17.8×45 cm |
| English operation system | Individual & all screen sharing, PPT, comment, voting, viewing venue large screen, video sharing, information sharing |
PCMS-I5
Multimedia Paperless Conference Management Server
ADM-60
Full Digital Conference System Controller
| Model No | ADM-60 |
| Microphone capacity | ≤4096 |
| Number of channels | 16 (default), 32, 64CH |
| Frequency response | 30Hz ~ 20KHz |
| Signal to noise ratio | >72 dB(A) |
| Channel crosstalk | >85 dB |
| Total harmonic distortion | <0.05% |
| Main power supply | 90132VAC / 180264VAC (by switch) |
| Audio input | LINE IN 1: 775mV balanced |
| LINE IN 2 | 775mV unbalanced |
| Audio output LINE OUT 1 | 1V balanced |
| LINE OUT 2 | 1V unbalanced |
| Output load | >1KΩ |
| RJ45 network port | Connect to the computer |
| Static power consumption | 30W |
| Output power consumption | ≤320W |
| Connection method | Special cable (8 core) |
| Connector reliability | Reliable |
| Follow the Data sheet | IEC60914 |
| Working temperature | -10°C ~ +60°C |
| Model No | ADC-60 |
| Cascade interface | 1 way MT-HW cascade interface |
| PC control interface | 1 way PC computer control interface, multi-function USB interface |
| TCP/IP control | 1 way TCP/IP control interface, supports SERVER or CLIENT mode |
| Power supply module | External eight-way power supply module |
| Touch screen | 5.7-inch true color wireless touch screen (optional: 7.1-inch) |
| Wireless receiver | Two-way RF wireless receiver |
ADC-60
Digital Conference Microphone Host
Video Aubern Paperless Conference System
Manfaat Paperless Conference System
Solusi Rapat Modern Tanpa Kertas, Lebih Efisien & Profesional
Kenapa Harus Beli Paperless Conference System di Indovisual?
Wujudkan Rapat Efisien Bersama Mitra yang Tepat
Untuk menghadirkan sistem rapat modern yang lebih efisien, Anda memerlukan solusi paperless yang andal dan terpercaya. Indovisual, sebagai penyedia resmi Paperless Conference System di Indonesia, siap membantu transformasi ruang rapat Anda. Kami tidak hanya menawarkan produk berteknologi tinggi dan berkualitas dunia, tetapi juga memberikan layanan lengkap mulai dari instalasi, pelatihan, hingga dukungan purna jual.
